Timeseries Databases Part 1: Parsing a Dataset with .NET

I often had to deal with large amounts time series data in my career and I have never been able to give qualified answers or recommendations for one database or another. So in a series of articles I want to learn more about TimescaleDB and InfluxDB.

In this article I will start with parsing a CSV dataset using .NET. The Dataset is going to be used in the upcoming articles.

All code to reproduce the article can be found in my GitHub repository at:

https://github.com/bytefish/GermanWeatherDataExample

The Dataset

The DWD Open Data portal of the Deutscher Wetterdienst (DWD) gives access to the historical weather data in Germany. I decided to use all available historical air temperature data for Germany given in a 10 minute resolution (FTP Link).

If you want to recreate the example, you can find the list of CSV files in the GitHub repository at: GermanWeatherDataExample/Resources/files.md.

The DWD dataset is given as CSV files and has a size of approximately 25.5 GB.

Parsing the Station Data

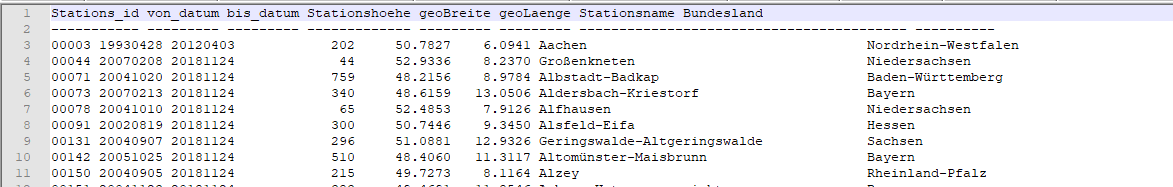

Let's start by looking at the CSV data for the weather stations given in the file zehn_min_tu_Beschreibung_Stationen.txt:

We can see, that the file has two header rows and is fixed-width format. This format can be easily parsed with the FixedLengthTokenizer of TinyCsvParser, which needs the indices of the data.

The Station Tokenizer

I start by defining a static class Tokenizers, which defines the start and end column indices for each property:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using TinyCsvParser.Tokenizer;

namespace Experiments.Common.Csv.Tokenizer
{
    public static class Tokenizers
    {
        public static ITokenizer StationsTokenizer
        {
            get
            {
                var columns = new[]
                {
                    new FixedLengthTokenizer.ColumnDefinition(0, 6),
                    new FixedLengthTokenizer.ColumnDefinition(6, 14),
                    new FixedLengthTokenizer.ColumnDefinition(15, 23),
                    new FixedLengthTokenizer.ColumnDefinition(32, 39),
                    new FixedLengthTokenizer.ColumnDefinition(43, 51),
                    new FixedLengthTokenizer.ColumnDefinition(52, 61),
                    new FixedLengthTokenizer.ColumnDefinition(61, 102),
                    new FixedLengthTokenizer.ColumnDefinition(102, 125),
                };

                return new FixedLengthTokenizer(columns, true);
            }
        }
    }
}

The Station Model

Now we need the C# class, that maps to the properties of the Station. In the file the end date is optional, so we need to model it as a nullable DateTime:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;

namespace Experiments.Common.Csv.Model
{
    public class Station
    {
        public string Identifier { get; set; }

        public string Name { get; set; }

        public DateTime StartDate { get; set; }

        public DateTime? EndDate { get; set; }

        public short StationHeight { get; set; }

        public string State { get; set; }

        public float Latitude { get; set; }

        public float Longitude { get; set; }
    }
}

The Station Mapper

A CsvMapping<Station> implementation is used to define the mapping between the column indices of the StationTokenizer and the C# class. All dates in the CSV file are given in a yyyyMMdd format, so we instantiate a custom TinyCsvParser DateTimeConverter and NullableDateTimeConverter to correctly parse the data:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using Experiments.Common.Csv.Model;
using TinyCsvParser.Mapping;
using TinyCsvParser.TypeConverter;

namespace Experiments.Common.Csv.Mapper
{
    public class StationMapper : CsvMapping<Station>
    {
        public StationMapper()
        {
            MapProperty(0, x => x.Identifier);
            MapProperty(1, x => x.StartDate, new DateTimeConverter("yyyyMMdd", System.Globalization.CultureInfo.InvariantCulture));
            MapProperty(2, x => x.EndDate, new NullableDateTimeConverter("yyyyMMdd", System.Globalization.CultureInfo.InvariantCulture));
            MapProperty(3, x => x.StationHeight);
            MapProperty(4, x => x.Latitude);
            MapProperty(5, x => x.Longitude);
            MapProperty(6, x => x.Name);
            MapProperty(7, x => x.State);
        }
    }
}

And that's it for the Station data already!

Parsing the Weather Data

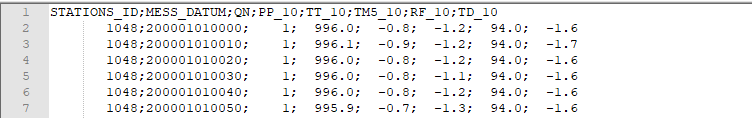

Let's start by looking at the CSV data for the weather data:

The data uses a ; as Column Delimiter, so we can use a simple StringSplitTokenizer.

Tokenizer

First of all we add the Tokenizer to the Tokenizers class:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using TinyCsvParser.Tokenizer;

namespace Experiments.Common.Csv.Tokenizer
{
    public static class Tokenizers
    {
        public static ITokenizer LocalWeatherDataTokenizer
        {
            get
            {
                return new StringSplitTokenizer(new [] {';' }, true);
            }
        }
    }
}

The Weather Data Model

I want to parse all data of the Dataset, so the C# model includes all properties of the CSV data:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;

namespace Experiments.Common.Csv.Model
{
    public class LocalWeatherData
    {
        public string StationIdentifier { get; set; }

        public DateTime TimeStamp { get; set; }

        public byte QualityCode { get; set; }

        public float? StationPressure { get; set; }

        public float? AirTemperatureAt2m { get; set; }

        public float? AirTemperatureAt5cm { get; set; }

        public float? RelativeHumidity { get; set; }

        public float? DewPointTemperatureAt2m { get; set; }
    }
}

Custom Converters for the Dataset

Now there are some interesting properties to notice in the dataset:

The Station identifier has no left-padded zeros, like in the CSV station data.
Missing Values are defined with -999.
All dates in the data are given as UTC.

We are going to write Custom Converters for each of the

1. Converter: Left Padding the Station Identifier

First of all we need to make sure, that the station identifier has left padded zeros to match the Station identifier.

The converters in TinyCsvParser implement the ITypeConverter<TTargetType> interface, which requires to implement a TryConvert(string value, out TTargetType result) method. If the input string cannot be parsed into the target type, then you should return false. If the converter is able to convert the data you should assign the result and return true.

The StringPadLeftConverter simply uses the string.PadLeft to implement the required funcationality.

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;
using TinyCsvParser.TypeConverter;

namespace Experiments.Common.Csv.Converter
{
    public class StringPadLeftConverter : ITypeConverter<string>
    {
        private readonly int totalWidth;
        private readonly char paddingChar;

        public StringPadLeftConverter(int totalWidth, char paddingChar)
        {
            this.totalWidth = totalWidth;
            this.paddingChar = paddingChar;
        }

        public bool TryConvert(string value, out string result)
        {
            result = null;

            if (value == null)
            {
                return true;
            }

            result = value.PadLeft(totalWidth, paddingChar);

            return true;
        }

        public Type TargetType
        {
            get { return typeof(string); }
        }
    }
}

2. Converter: Handling missing values in the data

The next converter is the IgnoreMissingValuesConverter, which ignores values matching a given string:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;
using System.Globalization;
using TinyCsvParser.TypeConverter;

namespace Experiments.Common.Csv.Converter
{
    public class IgnoreMissingValuesConverter : ITypeConverter<Single?>
    {
        private readonly string missingValueRepresentation;

        private readonly NullableSingleConverter nullableSingleConverter;

        public IgnoreMissingValuesConverter(string missingValueRepresentation)
        {
            this.missingValueRepresentation = missingValueRepresentation;
            this.nullableSingleConverter = new NullableSingleConverter();
        }

        public IgnoreMissingValuesConverter(string missingValueRepresentation, IFormatProvider formatProvider)
        {
            this.missingValueRepresentation = missingValueRepresentation;
            this.nullableSingleConverter = new NullableSingleConverter(formatProvider);
        }

        public IgnoreMissingValuesConverter(string missingValueRepresentation, IFormatProvider formatProvider, NumberStyles numberStyles)
        {
            this.missingValueRepresentation = missingValueRepresentation;
            this.nullableSingleConverter = new NullableSingleConverter(formatProvider, numberStyles);
        }


        public bool TryConvert(string value, out float? result)
        {
            if(string.Equals(missingValueRepresentation, value.Trim(), StringComparison.InvariantCultureIgnoreCase))
            {
                result = default(float?);

                return true;
            }

            return nullableSingleConverter.TryConvert(value, out result);
        }

        public Type TargetType
        {
            get { return typeof(Single?); }
        }
    }
}

3. Converter: Handling UTC Timestamps

From the documentation of the dataset we know, that all dates are given as UTC. But if we would parse the given data it would leave us with an unspecified DateTime Kind, because a string with a format yyyyMMddmmhh, for example 200001010000, contains no timezone designation.

Instead we need to explicitly specify the kind of the DateTime by using the DateTime.SpecifyKind method.

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;
using System.Globalization;
using TinyCsvParser.TypeConverter;

namespace Experiments.Common.Csv.Converter
{
    public class CustomDateTimeConverter : ITypeConverter<DateTime>
    {
        private readonly DateTimeKind dateTimeKind;

        private readonly DateTimeConverter dateTimeConverter;

        public CustomDateTimeConverter(DateTimeKind dateTimeKind)
            : this(string.Empty, dateTimeKind)
        {
        }

        public CustomDateTimeConverter(string dateTimeFormat, DateTimeKind dateTimeKind)
            : this(dateTimeFormat, CultureInfo.InvariantCulture, dateTimeKind)
        {
        }

        public CustomDateTimeConverter(string dateTimeFormat, IFormatProvider formatProvider, DateTimeKind dateTimeKind)
            : this(dateTimeFormat, formatProvider, DateTimeStyles.None, dateTimeKind)
        {
        }

        public CustomDateTimeConverter(string dateTimeFormat, IFormatProvider formatProvider, DateTimeStyles dateTimeStyles, DateTimeKind dateTimeKind)
        {
            this.dateTimeConverter = new DateTimeConverter(dateTimeFormat, formatProvider, dateTimeStyles);
            this.dateTimeKind = dateTimeKind;
        }

        public bool TryConvert(string value, out DateTime result)
        {
            if (dateTimeConverter.TryConvert(value, out result))
            {
                result = DateTime.SpecifyKind(result, dateTimeKind);

                return true;
            }

            return false;
        }

        public Type TargetType
        {
            get { return typeof(DateTime); }
        }
    }
}

The Weather Data Mapper

With all custom Converters in place the mapping between the CSV data and the C# model can be defined as a CsvMapping<LocalWeatherData>:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;
using Experiments.Common.Csv.Converter;
using Experiments.Common.Csv.Model;
using TinyCsvParser.Mapping;

namespace Experiments.Common.Csv.Mapper
{
    public class LocalWeatherDataMapper : CsvMapping<LocalWeatherData>
    {
        public LocalWeatherDataMapper()
        {
            MapProperty(0, x => x.StationIdentifier, new StringPadLeftConverter(5, '0'));
            MapProperty(1, x => x.TimeStamp, new CustomDateTimeConverter("yyyyMMddHHmm", DateTimeKind.Utc));
            MapProperty(2, x => x.QualityCode);
            MapProperty(3, x => x.StationPressure, new IgnoreMissingValuesConverter("-999"));
            MapProperty(4, x => x.AirTemperatureAt2m, new IgnoreMissingValuesConverter("-999"));
            MapProperty(5, x => x.AirTemperatureAt5cm, new IgnoreMissingValuesConverter("-999"));
            MapProperty(6, x => x.RelativeHumidity, new IgnoreMissingValuesConverter("-999"));
            MapProperty(7, x => x.DewPointTemperatureAt2m, new IgnoreMissingValuesConverter("-999"));
        }
    }
}

Extension #1: Skipping multiple lines

Looking at the station data you will see there are 2 header lines, that cannot be parsed. Sadly skipping a single header line is something I hardcoded into the TinyCsvParser. I will make it more configurable for future releases, but I cannot promise a timeline.

As the author of the library, it is very easy for me to add a ReadFromFile method, that allows skipping multiple lines:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;
using System.IO;
using System.Linq;
using System.Text;
using TinyCsvParser;
using TinyCsvParser.Mapping;
using TinyCsvParser.Model;

namespace Experiments.Common.Csv.Extensions
{
    public static class CsvParserExtensions
    {
        public static ParallelQuery<CsvMappingResult<TEntity>> ReadFromFile<TEntity>(this CsvParser<TEntity> csvParser, string fileName, Encoding encoding, int skip)
            where TEntity : class, new()
        {
            if (fileName == null)
            {
                throw new ArgumentNullException("fileName");
            }

            var lines = File
                .ReadLines(fileName, encoding)
                .Select((line, index) => new Row(index, line))
                .Skip(skip);

            return csvParser.Parse(lines);
        }
    }
}

Extension #2: Enumerable Batch Operator

Batching data often improves the performance of writes to a database. I want my import pipeline to be simple and expressed with LINQ, so I am adding an extension method Batch<T> on an IEnumerable<T>. It also allows to modify the batch size:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace Experiments.Common.Extensions
{
    public static class EnumerableExtensions
    {
        public static IEnumerable<IEnumerable<T>> Batch<T>(this IEnumerable<T> source, int size)
        {
            T[] bucket = null;
            var count = 0;

            foreach (var item in source)
            {
                if (bucket == null)
                {
                    bucket = new T[size];
                }

                bucket[count++] = item;

                if (count != size)
                {
                    continue;
                }

                yield return bucket.Select(x => x);

                bucket = null;
                count = 0;
            }

            if (bucket != null && count > 0)
            {
                yield return bucket.Take(count);
            }
        }
    }
}

Building the Parsers: Connecting all the things

After all the preliminary work we can finally build the CsvParser for the data. I also define both in a static class, so I can easily access the Parsers. No magic involved:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using Experiments.Common.Csv.Mapper;
using Experiments.Common.Csv.Model;
using Experiments.Common.Csv.Tokenizer;
using TinyCsvParser;

namespace Experiments.Common.Csv.Parser
{
    public static class Parsers
    {
        public static CsvParser<Station> StationParser
        {
            get
            {
                CsvParserOptions csvParserOptions = new CsvParserOptions(
                    skipHeader: false,
                    commentCharacter: string.Empty,
                    tokenizer: Tokenizers.StationsTokenizer,
                    degreeOfParallelism: 1,
                    keepOrder: false);

                return new CsvParser<Station>(csvParserOptions, new StationMapper());
            }
        }

        public static CsvParser<LocalWeatherData> LocalWeatherDataParser
        {
            get
            {
                CsvParserOptions csvParserOptions = new CsvParserOptions(
                    skipHeader: false,
                    commentCharacter: string.Empty,
                    tokenizer: Tokenizers.LocalWeatherDataTokenizer,
                    degreeOfParallelism: 1,
                    keepOrder: false);

                return new CsvParser<LocalWeatherData>(csvParserOptions, new LocalWeatherDataMapper());
            }
        }
    }
}

Conclusion

We are done with parsing the data. There was quite some non-intuitive work to be done, like defining custom converters on the CSV data. But we got all data processing parts nicely separated and have created reusable classes.

With LINQ we can write very elegant processing pipelines for the data:

private static void ParseStationsExample()
{
    var numberOfStations = Parsers.StationParser
        .ReadFromFile(@"G:\Datasets\CDC\zehn_min_tu_Beschreibung_Stationen.txt", Encoding.UTF8, 2)
        .Where(x => x.IsValid)
        .Select(x => x.Result)
        .Count();

    Console.WriteLine($"Found {numberOfStations} Stations!");
}

And it outputs:

Found 505 Stations!

We are now ready to throw the data at the time series databases.
