Building a Routing Application using PostGIS, OpenStreetMap, PgRouting and MapLibre

In this article I want to share a map and route planning application I have been working the past weekends. It is built on PostGIS, Open Street Map, PgRouting and the maplibre-gl library.

All code can be found in a Git repository at:

Table of contents

Screenshots

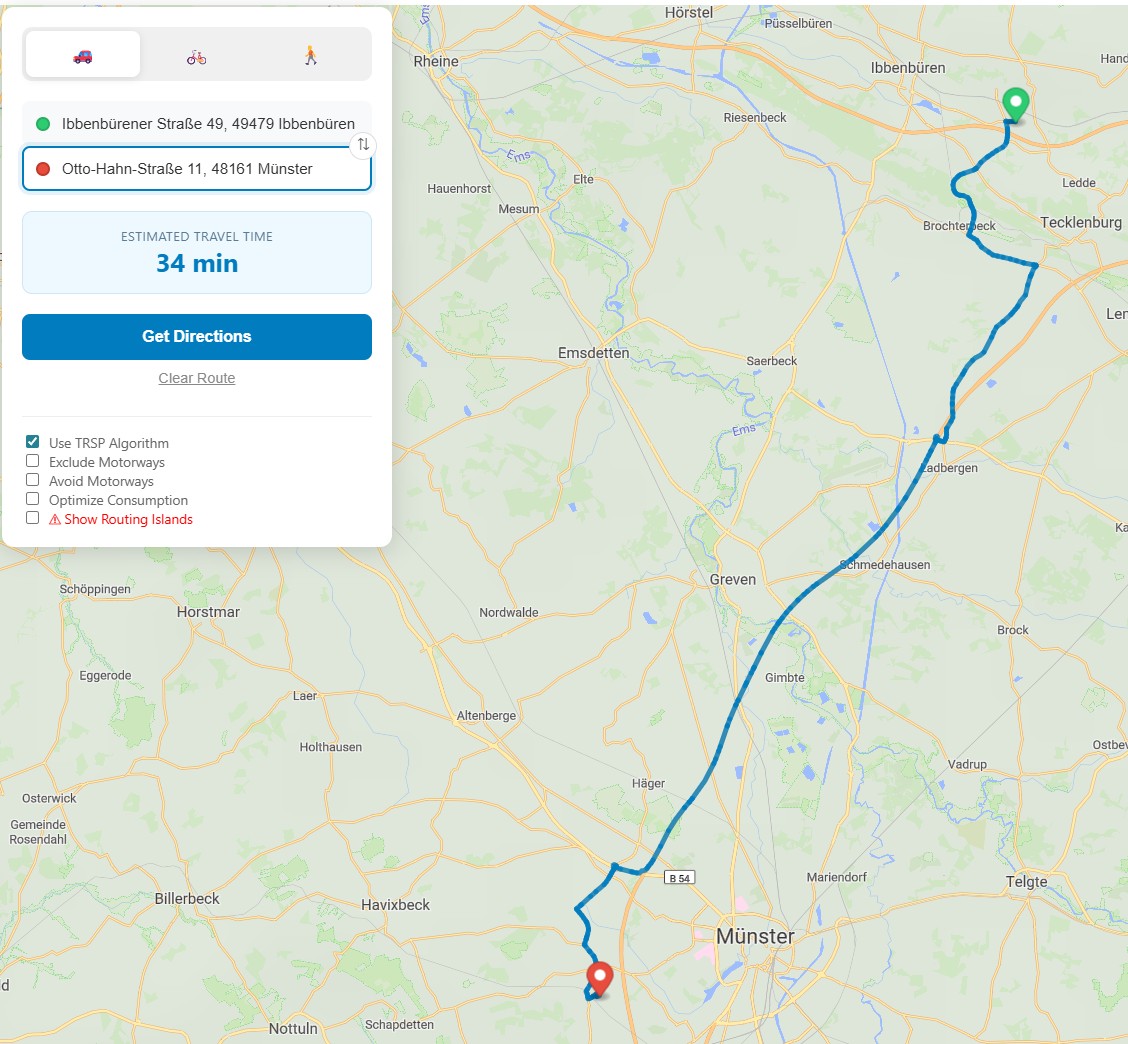

The final application allows you to browse a map and calculate routes for 3 transportation types (car, bike, foot):

Route Application

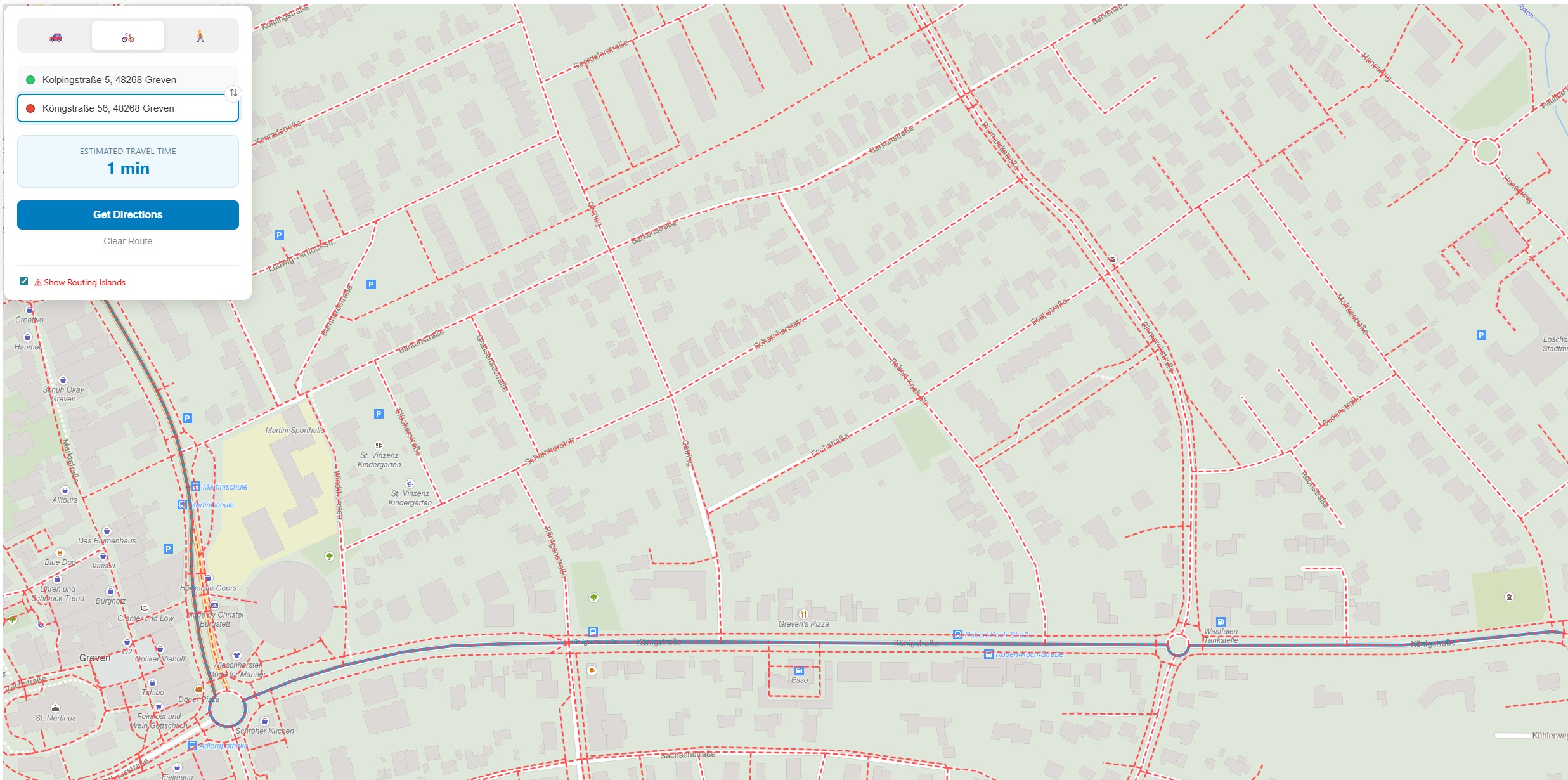

We can also do a Network Analysis for finding routing islands in our data:

Route Application Network Analysis

Certificates

Create and Trust the Developer Certificates using dotnet:

dotnet dev-certs https --clean
dotnet dev-certs https -ep ${HOME}/.aspnet/https/aspnetapp.pfx -p SuperStrongPassword --trust

Data

I am using the Natural Earth Relief using the following raster tiles:

For the OSM Data I am using geofabrik:

And you can use these Vector Tiles of Münster (Germany):

Configuration

In the .env file adjust the PBF path:

PBF_LOCAL_FOLDER=C:\Users\philipp\Downloads
PBF_FILENAME=muenster-regbez-260102.osm.pbf

In the .config/api/appsettings.json define the tilemaps to be used:

{
  "Application": {
    "Tilesets": {
      "openmaptiles": {
        "Filename": "/pgrouting-tiles/osm-2020-02-10-v3.11_nordrhein-westfalen_muenster-regbez.mbtiles",
        "ContentType": "application/vnd.mapbox-vector-tile"
      },
      "natural_earth_2_shaded_relief.raster": {
        "Filename": "/pgrouting-tiles/natural_earth_2_shaded_relief.raster.mbtiles",
        "ContentType": "image/png"
      }
    }
  }
}

In the .config/client/assets/appsettings.json define the API Url and the Style to use:

{
  "apiUrl": "https://localhost:5000",
  "mapOptions": {
    "mapStyleUrl": "https://localhost:5000/style/osm_liberty/osm_liberty.json",
    "mapInitialPoint": {
      "lng": 7.628202,
      "lat": 51.961563
    },
    "mapInitialZoom": 10
  }
}

In the .config/client/assets/style/osm_liberty/osm_liberty.json you'll need to setup the sources to match the API:

{
  "sources": {
    "ne_2_hr_lc_sr": {
      "tiles": [
        "https://localhost:5000/tiles/natural_earth_2_shaded_relief.raster/{z}/{x}/{y}"
      ],
      "type": "raster",
      "tileSize": 256,
      "maxzoom": 6
    },
    "openmaptiles": {
      "type": "vector",
      "tiles": [
        "https://localhost:5000/tiles/openmaptiles/{z}/{x}/{y}"
      ],
      "minzoom": 0,
      "maxzoom": 14
    }
  }
}

Running the Application

Then you can start the application with docker-compose:

docker-compose --profile dev up

Go to https://localhost:5001 and you can start to browse the map and calculate routes.
