Flight Tracking with the OpenSky Network API, Angular and ASP.NET Core

A few years ago, I have written a small Flight Tracking Software using ASP.NET Core, MapboxJS and the OpenSky API. But due to children and life, I've never managed to write about it.

I think it was a pretty cool project, and to leave it there for 4 years aches my heart. And a lot of people want to put things on web maps and see them moving around, right?

So let's look into it and bring it back to life. I'll update it to the most recent ASP.NET Core and Angular versions, MapboxJS will be replaced with MapLibreJS and while at it I'll also add Docker support.

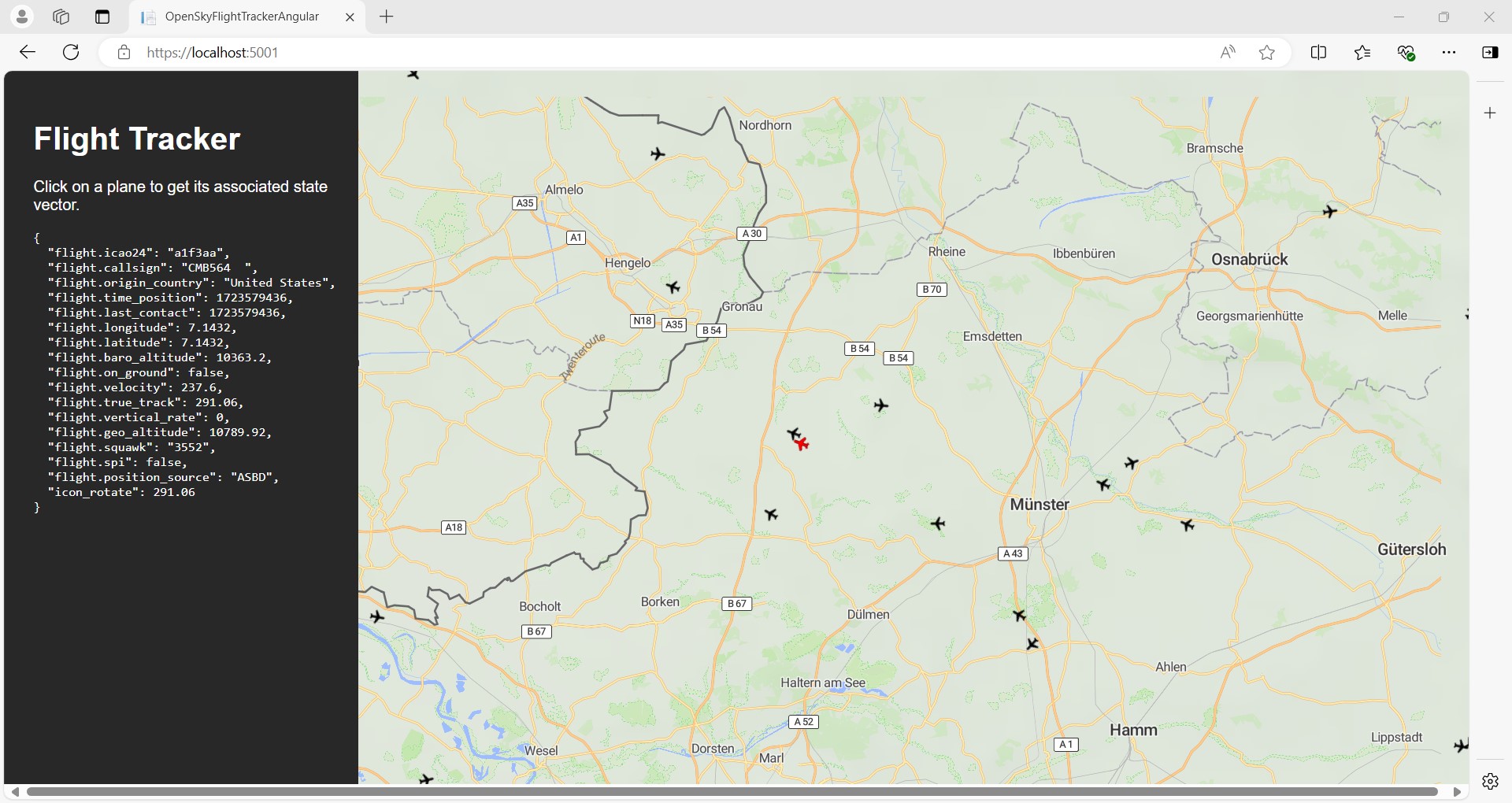

The final result looks like this:

All code can be found in a Git repository at:

https://github.com/bytefish/OpenSkyFlightTracker

Styles, Fonts, MBTiles, ... what's all that?

Before diving right into the migration plan and code, let's take a look at what's required to see beautiful web maps in our application. There are so called "Map Tiles", we need to download, there is a "Map Style" and "Fonts".

Tilesets and MBTiles

An empty map is boring to look at, even if we see planes flying above a grey area. We need a world map, we need tiles! What's that, a "tile"? In web maps the world is divided into a regular grid of little square areas and these square areas are called "tiles".

Then there is the MBTiles specification, which stands for "Mapbox Tiles". A subtle hint, that Mapbox intially came up with them. It's basically a SQLite database with a specific database schema, that allows us to query for tiles.

Where do you get these tiles from?

For one you can of course generate these tiles all by yourself. Back then Bertil Chapuis just wrote baremaps, which allows you to create vector maps all by yourself. It uses my PgBulkInsert library, so I have a sweet spot there.

But for a non-commercial project, the simplest way is to register an OpenMapTiles account and download the MBTiles for the region we are interested in. In the example for the repository I have used the "Regierungsbezirk Münster, Germany":

https://data.maptiler.com/downloads/europe/germany/nordrhein-westfalen/muenster-regbez/

I have also downloaded the Natural Earth Relief tiles, so for anything we don't have the OpenMapTiles data for, we get a nice view of the earths relief at least. A kind soul is sharing it here:

https://klokantech.github.io/naturalearthtiles/

I am not allowed to redistribute these MBTiles, so you have to do some manual work. If someone however comes up with a redistributable "Starter Set" of MBTiles (let's say 10MB), I'll be more than happy to add it.

Configuring the MBTiles Tilesets for the Application

If you want to change the MBTile, you can change it in the appsettings.json (or the Environment you want to change). My appsettings.json for local development looks like this:

{
  "Application": {
    "Tilesets": {
      "openmaptiles": {
        "Filename": "C:/Users/philipp/data/osm-2020-02-10-v3.11_nordrhein-westfalen_muenster-regbez.mbtiles",
        "ContentType": "application/vnd.mapbox-vector-tile"
      },
      "natural_earth_2_shaded_relief.raster": {
        "Filename": "C:/Users/philipp/data/natural_earth_2_shaded_relief.raster.mbtiles",
        "ContentType": "image/png"
      }
    }
  }
}

Style Specification

Mapbox initially came up with a specification for styling a map. I think we have to be thankful to the Mapbox team, that they didn't patent all their work. So we can enjoy beautiful web maps.

The "Style Specification" is a beast, you can find the documentation over at:

https://maplibre.org/maplibre-style-spec/

What it basically does is defining the visual appereance of a map for basically everything on a map, and it links to the tiles, fonts and glyphs to use. Where do we start?

The maputnik repository comes with a set of pre-built styles and I think the OSM Liberty style looks great:

https://github.com/maputnik/osm-liberty

I'll download it to the src/OpenSkyFlightTracker.Web.Client project into the /assets folder, where the Angular application resides. So when we publish the Angular application it will also be copied over.

PBF Fonts

We'll need fonts converted to the PBF format, which we can download here:

https://github.com/korywka/fonts.pbf

I have put a fonts.tar.xz (and a fonts.zip) into the /data folder of the project.

We need them in the OpenSkyFlightTracker.Web.Server web root folder, so switch to the folder /src/OpenSkyFlightTracker.Web.Server/wwwroot and run the following command:

> mkdir "assets\fonts"
> tar xf "..\..\..\data\fonts\fonts.zip" -C "assets/fonts"

The fonts are now unpacked to the wwwroot folder.

The Migration Plan

Migrating the Frontend to Angular 18

The repository slept there for four years. Angular was at Angular 10 back in the days, so there have been 8 major releases in between. It's needless to say, there have been some breaking changes.

In the Jumanji-esque land of JavaScript it's impossible to simply run an npm update and call it a day. Take a two week old JavaScript project and you'll find yourself in a hopeless adventure. The Angular CLI supports migrations, but only between two consecutive major releases.

So I am going to do the only sane thing. I'll create an Angular 18 sample project using the Angular CLI, copy the few parts of code over and fix the things breaking left and right.

Migrating the Backend to .NET 8

The Backend used .NET Core 3.1. .NET has a great backwards compability, so I could open the project, replace the TargetFramework in the Project file and it compiles happily. I think that's testament to the .NET ecosystem.

Except that... I am not happy with the "old way" of doing things! By now new best practices in ASP.NET Core emerged, and the "old code" looks nothing like current .NET developers would expect.

Plus the previous code relied on a "MapboxTileServer", that's nowhere to be found. It was a small ASP.NET Core API for serving vector map tiles in the MBTiles format.

Back then I've switched the MapboxTileServer repositories visibility to Private, because I feared infringing MapBox copyrights. And with a job, and two babies keeping me awake the nights? Some legal problems is nothing I want to deal with.

So while at it, we'll also rip the code for service map tiles off this mysterious MapboxTileServer repository and put it where it belongs, in the OpenSkyFlightTracker repository.

Sounds like a plan, right?

To the Code!

First: Creating a new Project Structure

In the previous implementation we had some kind of chaotic folder structure. The Backend API lived in a Backend folder, the Frontend lived in a Frontend folder, that had the Angular source included.

For the update I want everything to live together in a single Visual Studio Solution. The less context switches, the better. Visual Studio 2022 now comes with a new Project Type for JavaScript an TypeScript projects, called ESPROJ in the documentation:

https://learn.microsoft.com/en-us/visualstudio/javascript/javascript-in-visual-studio?view=vs-2022

It's a good idea to use it. So I create three projects:

OpenSkyFlightTracker.Api (ASP.NET Core)
- This is the Backend API to communicate with the OpenSky API and serve tiles.
OpenSkyFlightTracker.Web.Client (ESPROJ)
- This is where the Angular application goes.
OpenSkyFlightTracker.Web.Server (ASP.NET Core)
- This is where the Angular application is hosted in.

Angular 18: Environments are gone!

After creating the app from the Angular CLI templates, I've noticed, that there are no environments anymore. Say what? Yes, turns out managing configurations at build time was a bad idea, because every tiny configuration change needs a complete rebuild.

Wouldn't it be cool to have something like the appsettings.json in .NET?

So let's do it.

We define an AppSettings interface, that holds some of our required configurations:

export interface LngLat {
  lng: number;
  lat: number;
}

export interface MapOptions {
  mapStyleUrl: string;
  mapInitialPoint: LngLat;
  mapInitialZoom: number;
}

export interface AppSettings {
  apiUrl: string;
  mapOptions: MapOptions;
}

And then we define an AppSettingsService to read the whole thing:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

import { HttpClient } from "@angular/common/http";
import { Injectable, NgZone } from "@angular/core";
import { Observable, lastValueFrom } from "rxjs";
import { AppSettings } from "../model/app-settings";

@Injectable({
  providedIn: "root"
})
export class AppSettingsService {

  private appSettings?: AppSettings;

  constructor(private http: HttpClient) { }

  async loadAppSettings() {
    const appSettings = await lastValueFrom(this.http.get<AppSettings>('/assets/appsettings.json'));

    this.appSettings = appSettings;
  }

  getAppSettings(): AppSettings {
    if (!this.appSettings) {
      throw new Error('appsetting.json has not been loaded');
    }
    return this.appSettings;
  }
}

In the app.module.ts we wire it up. We'll need to use the APP_INITIALIZER injection token, so we block until the AppSettingsService is initialized:

import { APP_INITIALIZER, NgModule } from '@angular/core';

// ...

export function initConfig(appConfig: AppSettingsService) {
  return () => appConfig.loadAppSettings();
}

@NgModule({
  // ...
  providers: [
    // ...
    provideHttpClient(),
    {
      provide: APP_INITIALIZER,
      useFactory: initConfig,
      deps: [AppSettingsService],
      multi: true,
    },
  ],
  bootstrap: [AppComponent]
})
export class AppModule { }

We can then use it in a component. Here is the app.component.ts for example:

export class AppComponent implements OnInit, OnDestroy {

  // ...

  constructor(private sseService: SseService, private appSettingsService: AppSettingsService, private mapService: MapService) {
    const appSettings = this.appSettingsService.getAppSettings();

    // Set the Style for the Map:
    this.mapStyle = appSettings.mapOptions.mapStyleUrl;

    // Set the Initial Map Center:
    this.mapCenter = new LngLat(
      appSettings.mapOptions.mapInitialPoint.lng,
      appSettings.mapOptions.mapInitialPoint.lat);

    // ...
  }

  // ...
}

Angular: Defining the Endpoints for Tiles, Sprites and Fonts

I've thought about making the style and fonts very configurable, but it's not worth the effort. MapLibre GL JS expects us to define the tiles to be used in the "sources" section of the Map style, so let's do it in the osm_liberty.json style.

You can find it in assets/style/osm_liberty/osm_liberty.json:

{
  "sources": {
    "ne_2_hr_lc_sr": {
      "tiles": [
        "https://localhost:5000/tiles/natural_earth_2_shaded_relief.raster/{z}/{x}/{y}"
      ],
      "type": "raster",
      "tileSize": 256,
      "maxzoom": 6
    },
    "openmaptiles": {
      "type": "vector",
      "tiles": [
        "https://localhost:5000/tiles/openmaptiles/{z}/{x}/{y}"
      ],
      "minzoom": 0,
      "maxzoom": 14
    }
  },
  "sprite": "https://localhost:5001/assets/sprites/osm_liberty/osm-liberty",
  "glyphs": "https://localhost:5001/assets/fonts/{fontstack}/{range}.pbf",
}

Where ...

https://localhost:5000 is the OpenSkyFlightTracker.Api
https://localhost:5001 is the OpenSkyFlightTracker.Web.Server

API: Serving MBTiles

I've promised to show how to serve MBTiles.

We start by defining a Tileset class as:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

namespace OpenSkyFlightTracker.Api.Options
{
    public class Tileset
    {
        /// <summary>
        /// Path to the MBTiles.
        /// </summary>
        public required string Filename { get; set; }

        /// <summary>
        /// The Content-Type to be served.
        /// </summary>
        public required string ContentType { get; set; }
    }
}

This will be used in the ApplicationOptions to populate a dictionary of Tilesets, that can be accessed by name:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

namespace OpenSkyFlightTracker.Api.Options
{
    public class ApplicationOptions
    {
        // ...

        /// <summary>
        /// Gets or sets the Tilesets available.
        /// </summary>
        public Dictionary<string, Tileset> Tilesets { get; set; } = new();
    }
}

The Tilesets for our Docker container look like this in the appsettings.Docker.json:

{
  "Application": {
    "Tilesets": {
      "openmaptiles": {
        "Filename": "/opensky-tiles/osm-2020-02-10-v3.11_nordrhein-westfalen_muenster-regbez.mbtiles",
        "ContentType": "application/vnd.mapbox-vector-tile"
      },
      "natural_earth_2_shaded_relief.raster": {
        "Filename": "/opensky-tiles/natural_earth_2_shaded_relief.raster.mbtiles",
        "ContentType": "image/png"
      }
    }
  }
}

MBTiles are basically a SQLite database, so we then add a Package Reference to Microsoft.Data.Sqlite:

<Project Sdk="Microsoft.NET.Sdk.Web">

    <!-- ... -->

    <ItemGroup>
        <PackageReference Include="Microsoft.Data.Sqlite" Version="8.0.8" />
        <!-- ... -->
    </ItemGroup>

</Project>

We'll then create a MapboxTileService, which is used to read the tile data for a given x, y and z, where z is the Zoom Level, x is the column number and y is the row.

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using Microsoft.Data.Sqlite;
using OpenSkyFlightTracker.Api.Options;

namespace OpenSkyFlightTracker.Api.Services
{
    public class MbTilesService
    {
        public byte[]? Read(Tileset tileset, int z, int x, int y)
        {
            using (var connection = new SqliteConnection($"Data Source={tileset.Filename}"))
            {
                connection.Open();

                var command = connection.CreateCommand();

                command.CommandText = "SELECT tile_data FROM tiles WHERE zoom_level = $level AND tile_column = $column AND tile_row = $row";

                command.Parameters.AddWithValue("$level", z);
                command.Parameters.AddWithValue("$column", x);
                command.Parameters.AddWithValue("$row", ReverseY(y, z));

                using (var reader = command.ExecuteReader())
                {
                    while (reader.Read())
                    {
                        return GetBytes(reader);
                    }
                }
            }

            return null;
        }

        private static int ReverseY(int y, int z)
        {
            return (int)(Math.Pow(2.0d, z) - 1 - y);
        }

        private static byte[] GetBytes(SqliteDataReader reader)
        {
            byte[] buffer = new byte[2048];

            using (MemoryStream stream = new MemoryStream())
            {
                long bytesRead = 0;
                long fieldOffset = 0;

                while ((bytesRead = reader.GetBytes(0, fieldOffset, buffer, 0, buffer.Length)) > 0)
                {
                    stream.Write(buffer, 0, (int)bytesRead);
                    fieldOffset += bytesRead;
                }

                return stream.ToArray();
            }
        }
    }
}

And to serve the tiles we add a MbTilesController, that uses the MbTilesService to read from a requested Tileset.

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Options;
using OpenSkyFlightTracker.Api.Options;
using OpenSkyFlightTracker.Api.Services;

namespace OpenSkyFlightTracker.Api.Controllers
{
    [ApiController]
    public class MbTilesController : ControllerBase
    {
        private readonly ILogger<MbTilesController> _logger;

        private readonly ApplicationOptions _applicationOptions;
        private readonly MbTilesService _mapboxTileService;

        public MbTilesController(ILogger<MbTilesController> logger, IOptions<ApplicationOptions> applicationOptions, MbTilesService mapboxTileService)
        {
            _logger = logger;
            _applicationOptions = applicationOptions.Value;
            _mapboxTileService = mapboxTileService;
        }

        [HttpGet]
        [Route("/tiles/{tileset}/{z}/{x}/{y}")]
        public ActionResult Get([FromRoute(Name = "tileset")] string tiles, [FromRoute(Name = "z")] int z, [FromRoute(Name = "x")] int x, [FromRoute(Name = "y")] int y)
        {
            _logger.LogDebug($"Requesting Tiles (tileset = {tiles}, z = {z}, x = {x}, y = {y})");

            if (!_applicationOptions.Tilesets.TryGetValue(tiles, out Tileset? tileset))
            {
                _logger.LogWarning($"No Tileset available for Tileset '{tiles}'");

                return BadRequest();
            }

            var data = _mapboxTileService.Read(tileset, z, x, y);

            if (data == null)
            {
                return Accepted();
            }

            // Mapbox Vector Tiles are already compressed, so we need to tell
            // the client we are sending gzip Content:
            if (tileset.ContentType == Constants.MimeTypes.ApplicationMapboxVectorTile)
            {
                Response.Headers.TryAdd("Content-Encoding", "gzip");
            }

            return new FileContentResult(data, tileset.ContentType);
        }
    }
}

That's our Tile Server!

Docker: OpenSkyFlightTracker.Api

The Dockerfile for the OpenSkyFlightTracker.Api is an easy one. We can merely copy and paste the example from the Microsoft documentation and off we go:

FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build
WORKDIR /source

COPY ../src/OpenSkyFlightTracker.Api/*.csproj ./OpenSkyFlightTracker.Api/

RUN dotnet restore "OpenSkyFlightTracker.Api/OpenSkyFlightTracker.Api.csproj"

COPY ../src/OpenSkyFlightTracker.Api/. ./src/OpenSkyFlightTracker.Api/

RUN dotnet publish ./src/OpenSkyFlightTracker.Api/OpenSkyFlightTracker.Api.csproj -c release -o /app

FROM mcr.microsoft.com/dotnet/aspnet:8.0

WORKDIR /app
COPY --from=build /app ./

ENTRYPOINT ["dotnet", "OpenSkyFlightTracker.Api.dll"]

Docker: OpenSkyFlightTracker.Web.Server

I want to host the Angular app in an ASP.NET Core Web Application, so we have two projects:

OpenSkyFlightTracker.Web.Client
OpenSkyFlightTracker.Web.Server

My reasoning here is a simple one: I don't want to fiddle around with nginx, because I really don't want to learn yet another configuration language. If I can stay in the .NET ecosystem, I prefer to stay.

Output the Angular Build to the ASP.NET Application

So we need to first solve a small riddle: How does the build artifact of ng build go into the wwwroot folder of the OpenSkyFlightTracker.Web.Server project? Finding this out was quite an adventure.

Easy! In the angular.json we'll need to set the outputPath to the wwwroot folder of the ASP.NET Core Web project. So whenever we run an ng build or npm run build, the build artifacts will find their place:

{
  "architect": {
    "build": {
      "options": {
        "outputPath": {
            "base": "../OpenSkyFlightTracker.Web.Server/wwwroot",
            "browser": ""
        },
        "index": "src/index.html"
      }
    }
  }
}

Just took me an hour to find this out.

How do we exclude files from Publishing?

Now there's another thing to take care of. If you look into the wwwroot folder of the OpenSkyFlightTracker.Web.Server
project, you'll find a README.txt and a link to the fonts.zip file. As previously discussed, you need to manually extract the fonts to this folder, but we don't want to deploy them!

So in the OpenSkyFlightTracker.Web.Server.csproj we'll add the following ItemGroup entries:

<Project Sdk="Microsoft.NET.Sdk.Web">

  <!-- ... -->


  <ItemGroup>
      <Content Include="..\..\data\fonts\fonts.tar.xz" Link="wwwroot\fonts.tar.xz">
          <CopyToOutputDirectory>Never</CopyToOutputDirectory>
          <CopyToPublishDirectory>Never</CopyToPublishDirectory>
      </Content>
  </ItemGroup>

  <ItemGroup>
    <Content Update="wwwroot\README.txt">
      <CopyToOutputDirectory>Never</CopyToOutputDirectory>
      <CopyToPublishDirectory>Never</CopyToPublishDirectory>
    </Content>
  </ItemGroup>

  <!-- ... -->

</Project>

Finally the Dockerfile

Now we can finally write the Dockerfile. There's not a lot of things happening, except for installing npm, because we need it for building the Angular app. And there's a point, where we are weaseling in the fonts using Dockers ADD command.

FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build

RUN curl -fsSL https://deb.nodesource.com/setup_18.x | bash -
RUN apt-get install nodejs -y

WORKDIR /data
COPY ../data/fonts/fonts.tar.xz ./fonts.tar.xz

WORKDIR /source

COPY ../src/OpenSkyFlightTracker.Web.Client/ ./OpenSkyFlightTracker.Web.Client/
COPY ../src/OpenSkyFlightTracker.Web.Server/ ./OpenSkyFlightTracker.Web.Server/

RUN dotnet restore "OpenSkyFlightTracker.Web.Server/OpenSkyFlightTracker.Web.Server.csproj"

WORKDIR /source/OpenSkyFlightTracker.Web.Client
RUN npm install

WORKDIR /source/OpenSkyFlightTracker.Web.Server

RUN dotnet publish -c release -o /app  /p:UseAppHost=false

FROM mcr.microsoft.com/dotnet/aspnet:8.0

WORKDIR /app

ADD ../data/fonts/fonts.tar.xz ./wwwroot/assets/fonts

COPY --from=build /app ./

ENTRYPOINT ["dotnet", "OpenSkyFlightTracker.Web.Server.dll"]

Docker Compose

And now let's write the docker-compose.yml to start both services. We are using the Development Certificates to provide https for all services. At the same time we are adding the User Secrets, so they are also available within the application.

networks:
  services:

services:
  opensky-api:
    container_name: opensky-api
    build:
      context: .
      dockerfile: ./docker/opensky-api/Dockerfile
    environment:
      - ASPNETCORE_ENVIRONMENT=Docker
      - ASPNETCORE_HTTPS_PORTS=5000
      - ASPNETCORE_Kestrel__Certificates__Default__Path=/https/aspnetapp.pfx
      - ASPNETCORE_Kestrel__Certificates__Default__Password=SuperStrongPassword
    profiles:  ["api", "dev"]
    env_file:
      - ./docker/.env
    ports:
      - "5000:5000"
    volumes:
      - ~/.aspnet/https:/https:ro
      - ${APPDATA}/Microsoft/UserSecrets:/root/.microsoft/usersecrets:ro
      - ./docker/opensky-tiles:/opensky-tiles
  opensky-web:
    container_name: opensky-web
    build:
      context: .
      dockerfile: ./docker/opensky-web/Dockerfile
    environment:
      - ASPNETCORE_ENVIRONMENT=Docker
      - ASPNETCORE_HTTPS_PORTS=5001
      - ASPNETCORE_Kestrel__Certificates__Default__Path=/https/aspnetapp.pfx
      - ASPNETCORE_Kestrel__Certificates__Default__Password=SuperStrongPassword
    profiles:  ["web", "dev"]
    env_file:
      - ./docker/.env
    ports:
      - "5001:5001"
    volumes:
      - ~/.aspnet/https:/https:ro
      - ${APPDATA}/Microsoft/UserSecrets:/root/.microsoft/usersecrets:ro

We can now run:

docker compose --profile dev up

And you can visit https://localhost:5001 and a map with the planes appears.

Conclusion

So I think this repository gives you a pretty good idea, how to integrate web maps in your Angular application and how to feed it from an ASP.NET Core Backend.

If you need to host larger maps or, say, the entire world map, you'll need a beefy machine and a good amount of disk space. And also think about adding some caching to the tile server... or maybe use a battle-tested tile server?

However, it's a lean implementation, that I would use to display maps in "In-House" applications. It's so few .NET and TypeScript involved, and easy to adapt to your needs.

bytefish.de
