Using XML Maps for exporting XML Data from Excel

A large part of the world is built on Microsoft Excel and CSV files. And knowing how to extract and parse these formats probably saves you a lot of time and headaches.

In this post I will show how to use the XML Mapping functionality to export data from Microsoft Excel.

All code is available in a GitHub repository at:

Why XML Maps?

Now there are many, many ways to extract data from Microsoft Excel.

You could use an OleDB Connection to query worksheets, populate a DataTable and then map to your data model. It sounds appealing, but chances are you'll find yourself knee-deep in trying to stop Excel from guessing Data Types and spend hours experimenting with Registry keys and researching connection strings.

You could export your data to CSV first and use a CSV Parser to read the data. But what about culture specific formats in Excel? What about encodings gone wrong? What about systems with non-default column delimiters? What about newlines in the header row? How can we make sure cells have the correct data type? Is anything validated? Oh dear.

I think XML Maps are a simple way to avoid most of this and it's something I seldomly see examples for.

Let's change this.

Defining XML Maps

Imagine we have the following Excel Sheet with a list of people:

Each person has a first name, a last name, a birth date and an income.

So I start by defining a XSD Schema describing what the exported XML data looks like.

<xsd:schema xmlns:xsd="">

  <!-- Define the Entity Type -->
  <xsd:complexType name="ExcelInteropDataRow">
    <xsd:sequence minOccurs="0">
      <xsd:element minOccurs="0" nillable="true" type="xsd:string" name="FirstName" form="unqualified"/>
      <xsd:element minOccurs="0" nillable="true" type="xsd:string" name="LastName" form="unqualified"/>
      <xsd:element minOccurs="0" nillable="true" type="xsd:date" name="BirthDate" form="unqualified"/>
      <xsd:element minOccurs="0" nillable="true" type="xsd:decimal" name="Income" form="unqualified"/>

  <!-- Model as a List of Entities -->
  <xsd:element nillable="true" name="ExcelInteropData">
      <xsd:sequence minOccurs="0" maxOccurs="unbounded">
        <xsd:element name="Entities" type="ExcelInteropDataRow" form="unqualified" />

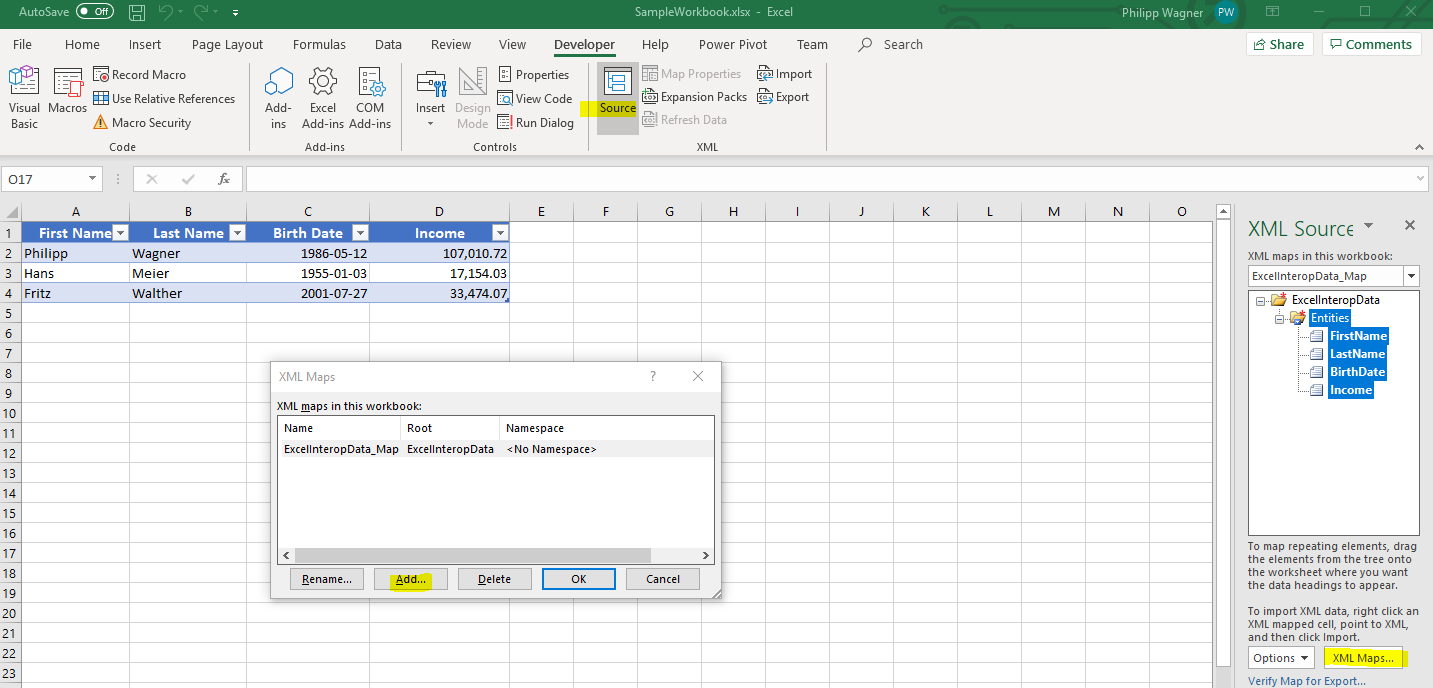

Next I open the Developer Tab in Excel, click Source to show the XML Mappings and click on Add ... to add the above Schema. You can see, that the Elements of the Schema appear in the XML Source pane.

Now select the Entities node and drag it on the First Name column. This will map all following columns to the XML element in the order given in the Schema. See why I wrote the Schema exactely like in the Excel Sheet?

And that's it for the Excel-side! Let's go to the C# application.


Having an XSD makes it easy to generate matching C# classes using xsd.exe. I always tend to write small Batch scripts for this kind of jobs, so it's you can change the path to the executable:

@echo off

SET XSD_EXECUTABLE="C:\Program Files (x86)\Microsoft SDKs\Windows\v8.1A\bin\NETFX 4.5.1 Tools\xsd.exe"

%XSD_EXECUTABLE% "Schemas/ExcelInteropSample.xsd" /classes /namespace:ExcelInteropSample.Contracts.Generated /o:"Generated"

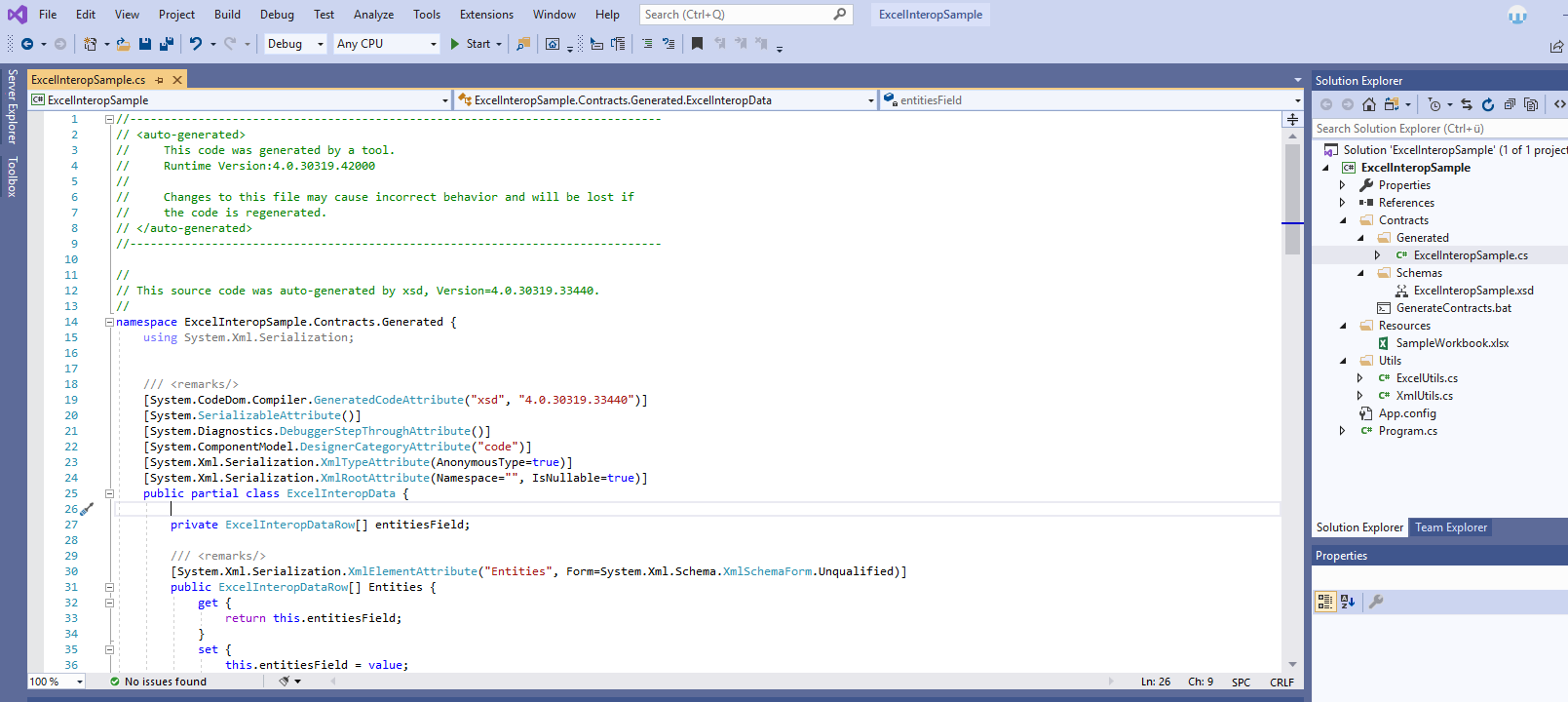

Executing this script leaves us with the generated contracts:

Using the Excel Interop functionality from the Microsoft.Office.Interop.Excel namespace, we can easily write a C# method to extract the XML data using the XML Map. The method should be probably be extended with passing the XmlMap index, the Sheet Name and so on:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using Microsoft.Office.Interop.Excel;
using System;
using System.Runtime.InteropServices;

namespace ExcelInteropSample.Utils
    public static class ExcelUtils
        public static bool TryExportXml(string xlsxFilePath, out string xmlData)
            xmlData = string.Empty;

            Application xlApp = new Application();

            xlApp.Visible = false;

            Workbook xlBook = xlApp.Workbooks.Open(Filename: xlsxFilePath,
                UpdateLinks: Type.Missing,
                ReadOnly: true,
                Format: Type.Missing,
                Password: Type.Missing,
                WriteResPassword: Type.Missing,
                IgnoreReadOnlyRecommended: Type.Missing,
                Origin: Type.Missing,
                Delimiter: Type.Missing,
                Editable: Type.Missing,
                Notify: Type.Missing,
                Converter: Type.Missing,
                AddToMru: Type.Missing,
                Local: Type.Missing,
                CorruptLoad: Type.Missing);

            XlXmlExportResult exportXmlResult = xlBook.XmlMaps[1].ExportXml(out xmlData);

            xlBook.Close(Type.Missing, Type.Missing, Type.Missing);


            // Cleanup:

            if (exportXmlResult.HasFlag(XlXmlExportResult.xlXmlExportValidationFailed))
                return false;

            return true;

This method enables us to write a line like this to export the XML based on the first defined XmlMap:

var success = ExcelUtils.TryExportXml(filename, out string xml);

The final step is to deserialize the XML data to the generated C# classes. This can be done using the XmlSerializer.

Again I am writing a small method for the job:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using System.IO;
using System.Xml.Serialization;

namespace ExcelInteropSample.Utils
    public static class XmlUtils
        public static TEntityType Deserialize<TEntityType>(string xmlString)
            XmlSerializer xmlSerializer = new XmlSerializer(typeof(TEntityType));

            using (StringReader stringReader = new StringReader(xmlString))
                return (TEntityType)xmlSerializer.Deserialize(stringReader);

And finally we can connect all things to read the XML data, deserialize it and operate on the strongly-typed entities:

// Copyright (c) Philipp Wagner. All rights reserved.
// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using ExcelInteropSample.Contracts.Generated;
using ExcelInteropSample.Utils;
using System;
using System.Globalization;
using System.IO;

namespace ExcelInteropSample
    class Program
        static void Main(string[] args)
            // We copy the Workbook to the bin/Debug, so we first need to get the absolute Path Excel should load:
            var filename = Path.Combine(System.AppContext.BaseDirectory, @"Resources\SampleWorkbook.xlsx");

            // Then we get the XML Data as string using the first XmlMap[1]:
            var success = ExcelUtils.TryExportXml(filename, out string xml);

                Console.WriteLine($"Exporting '{filename}' to XML failed");


            // And then use the XmlSerialize to deserialize it:
            var data = XmlUtils.Deserialize<ExcelInteropData>(xml);

            // And now we can safely iterate over the data:
            foreach(var entity in data.Entities)
                var culture = new CultureInfo("en-US");

                Console.WriteLine($"{entity.FirstName} {entity.LastName} was born on {entity.BirthDate?.ToString(culture.DateTimeFormat.ShortDatePattern)} and has an Income of {entity.Income?.ToString("C", culture)}");



And that's it!

Does this method have its shortcomings? Oh yes, of course! What about repeating fields? Nested elements? What if I do not have Microsoft Excel on the server? What if I have no control over the incoming Excel sheets and can not apply an XML mapping? What if my data is huge and the XML string blows up?

But anyway.

I find XML Maps are a simple way to not deal with Excel guessing the types. And I am not getting headaches about encodings, culture, delimiters and all this. Generating the contracts and deserialization is a big plus for me, so I do not have to hand roll anything.

And on the bright side, I get some data validation for free.
